LK series conveyable mixer
      Lk series conveyable mixer is a sort of microminiature high efficiency mixer, and assimilate from lots of high techniques for more improvements, its motor produced by special alloy material make the weight and volume minimum and convenient remove to mixing in several vessels, the new clamp structure make mixer random adjustion in angle range of 0~90¡ã and reliable fixion and stable work.

LKH removable agitator
      LKH series removable agitator with removable rolling wheels supporting, its supporting can remove up and down and keep the best mixing position with mixing vessel, endless mechanical speed-change, adjust the operation hand-wheel for attaining the required mixing speed, this series agitator mostly used for small vessel which cannot fix directly of its top edge.

      The specification series of removable agitator by our company production in much kinds, and be fit for kinds of site plant situation, such as LYK series removable hydraulic lift agitator, LKG series fixation hydraulic lift agitator, or according to the client¡¯s requirements for design and manufacturing.
LKG series fixation hydraulic lift agitator

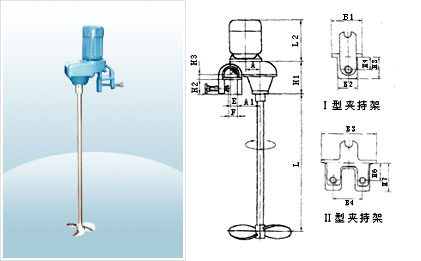

parameter & dimension of LK series conveyable mixer
Mixer Model
 Power
 Mixing speed
r/min		 Agitator diameter
 A A1 E F Lmax L2 H2 H3 H4 H5 H6 H7 B1 B2 B3 B4 Mixing volume
(l)
LK20-11S 0.25 375 250 75 107 36 53 1000 245 87 35 35 70     90 55     400¡«1000
LK20-15S 425 200
LK20-27S 600 150
LK20-4S 0.37 300 300 800¡«2000
LK20-12S 375 250
LK20-24S 550 200
LK25-10S 0.55 330 300 100 160 40 62 1300 245 120 47 55 90 65 100 130 70 160 100 1000¡«3000
LK25-18S 425 250
LK25-22S 500 200
LK25-8S 0.75 300 350 1500¡«4000
LK25-15S 375 300
LK25-23S 500 250
LK25-12S 1.1 330 350 100 160 40 62 1500 265 120 47 55 90 65 100 130 70 160 100 2000¡«6000
LK25-16S 425 300
LK25-17S 1.5 375 350 100 160 40 62 1500 295 120 47 55 90 65 100 130 70 160 100 3000¡«8000
LK25-25S 500 300
LK30-15S 2.2 330 400 112 190 50 85 1800 320 175 50   75 125 200 120 5000¡«12000
LK30-20S 425 350
LK30-23S 500 300
LK30-14S 3 300 450 6000-15000
LK30-18S 375 400
LK30-21S 500 350
